SparqEE POWERv1.0

Special Features:

Power Board

5-25V Input

3.3V, 5V Output

3A Max Current

Wire or Header Pin Input

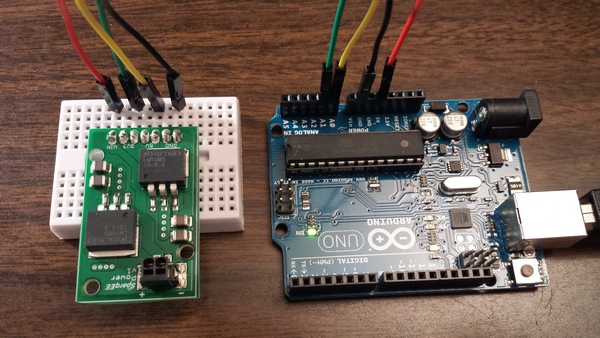

The POWERv1.0 is provided as a wide input range Power board supplying 3.3V and 5V output. Most development environments need either a 3.3V or 5V. This board provides both.

Purchase

Forum

Datasheet

Power

Supply voltage range: 5.0 to 25V
Current maximum: 3A

Note: View the LM1085 datasheets for more information on temperature limitations based on input voltage and current requirements.

Physical

26mm x 42mm (1.02″ x 1.65″)

Operating Temperature

-40°C to +85°C

Pin Assignment:

Pin	Function	Optional/Required	Voltage	I/O
GND	Ground connection	Required (or -)	0	I
GND	Ground connection	Optional	0	I
5V	5V output	Optional	5V	O
5V	5V output	Optional	5V	O
3V3	3.3V output	Optional	3.3V	O
3V3	3.3V output	Optional	3.3V	O
VIN	VIN positive supply	Required (or +)	5-25V	I
+	Positive wire connector	Required (or VIN)	5-25V	I
–	Negative wire connector	Required (or GND)	0	I

Code:

Arduino

Download Code

Connect the following pins:

Pin	#	Function	Procedure	Voltage	I/O	Arduino
GND	1	Ground connection	Static connect	0	I	GND
5V	3	5V output	Verify voltage	5V	O	A0
3V3	5	3.3V output	Verify voltage	3.3V	O	A1
VIN	7	VIN positive supply	Static connect	5-25V	I	5V
